ETM

• ARM/Cortex Trace (parallel)

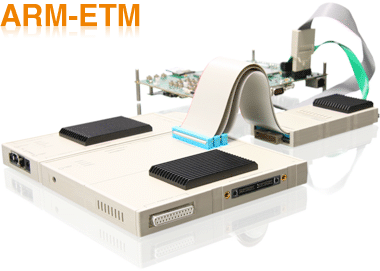

• ARM/Cortex ETM (serial)

ARM/Cortex Trace (parallel)

• Up to 8 GByte trace buffer
• Target voltage 1.2 .. 3.3 V
• 5 ns time stamp
• Program and data trace
• Performance analysis
• Function and task run-time measurement
• Code coverage
• Support for Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM)
• Support for Embedded Trace Buffer (ETB), Trace Memory Controller (TMC), Trace Port Interface Unit (TPIU)
• Support for multiple trace sources in a single stream (CoreSight trace)

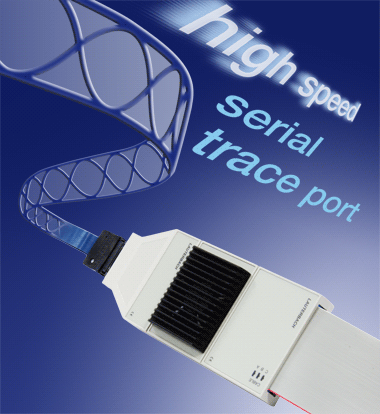

• Support of High-Speed Serial Trace Port (ETM-HSSTP, ARM specified)
• Compatible to Xilinx Aurora protocol
• Support of up to four differential lanes
• Maximum 6,25Gbit/s lane speed
• Up to 8 GByte trace buffer size, sufficient for up to 48 Giga CPU cycles

Nexus

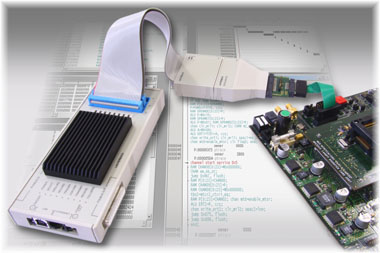

• MPC55xx/MPC56xx NEXUS Debugger & Trace

• MPC57xx NEXUS High Speed Serial Trace Port

• QorIQ PowerPC NEXUS Aurora Trace Port

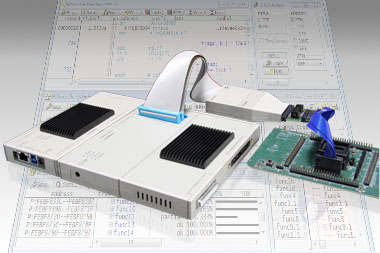

• RH850 Trace

• RH850 NEXUS High Speed Serial Trace Port

• Support for NEXUS standard class 1 to 3+
• Easy high-level and assembler debugging
• Program flow and Data trace
• Watchpoint and Ownership tracing
• Up to 4 GByte trace memory
• Trigger programming
• Interface to all hosts
• USB and ETHERNET interface included
• Support for VLE (Variable Length Encoding)
• eTPU, GTM and SPT debuggers included
• eTPU program and data trace supported
• Data trace for additional trace clients (e.g. DMA, FlexRay)

MPC57xx NEXUS High Speed Serial Trace Port

• Aurora NEXUS high-speed serial trace
• Program flow via Branch Trace Messages (BTM)
• Data Trace Messaging supported (DTM)
• Information on current task via Ownership Trace Messages (OTM)
• Supports onchip peripheral block tracing
• Supports timestamps generated by NEXUS clients as well as TRACE32^® generated timestamps
• Multicore tracing
• Comprehensive program profiling
• Target-OS aware profiling
• Code coverage

QorIQ PowerPC NEXUS Aurora Trace Port

• High-speed serial trace
• Program flow via Branch Trace Messages (BTM)
• Information on current task via Ownership Trace Messages (OTM)
• Supports onchip peripheral block tracing
• Supports timestamps generated by NEXUS clients as well as TRACE32^® generated timestamps
• Multicore tracing
• Comprehensive program profiling
• Target-OS aware profiling
• Code coverage

RH850 Trace

• Program flow via Branch Trace Messages (BTM)
• Data Trace Messaging supported (DTM)
• Supports onchip peripheral block tracing
• Multicore tracing
• Trace-based debugging
• Full support for trigger and filter features
• Up to 8 GByte trace memory
• 5 ns off-chip time stamp
• Comprehensive program profiling
• Target-OS aware profiling
• Code coverage

RH850 NEXUS High Speed Serial Trace Port

• Aurora NEXUS high-speed serial trace
• Program flow via Branch Trace Messages (BTM)
• Data Trace Messaging supported (DTM)
• Supports onchip peripheral block tracing
• Multicore tracing
• Comprehensive program profiling
• Target-OS aware profiling
• Code coverage
