Protocol Test Card (full system shown): Selected by the PCI-SIG as an official test tool for PCI Express 3.0 and as a standard conformance test tool for NVMe

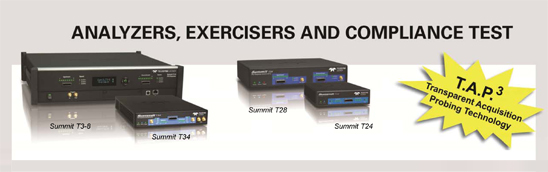

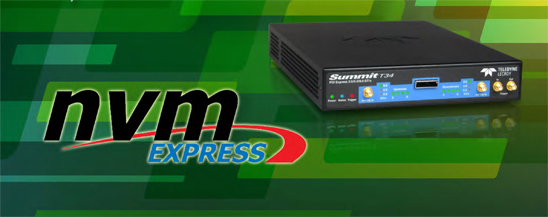

NVMe protocol analyzers range from a ultra light portable to rackable size for data center use and are comprehensive analysis tools to capture, decode, display and analyze data traffic for NVM Express. They support link widths (x1, x2, x4, x8 or x16), required speed support (2.5GT/s, 5GT/s or 8GT/s), desired memory buffer size (2, 4, 8, 32 or 64 GB) and special features like NVMe Enhanced mode for long trace recording for your test application.

The NVMe exerciser can be programmed to an extremely broad range of capabilities, as well as emulate NVM Express, SATA Express and SCSI Express protocol interfaces as a device or host. Additionally, it is used as part of the test set up required for NVMe compliance testing

With comprehensive support for USB Type-C™, 3.1 and Power Delivery specifications, Teledyne LeCroy’s legendary Voyager analyzer platform provides the industry’s most accurate and reliable capture of SuperSpeed USB and PD protocol for fast debug, analysis and problem solving. Featuring the de facto standard CATC Trace™ display and loaded with innovative features that help uncover elusive protocol errors, the Voyager platform is the intelligent choice for any USB validation needs.

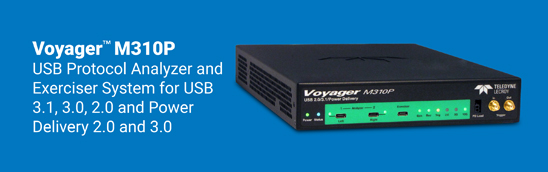

The M310P is available with an integrated exerciser capable of emulating host and endpoint behaviors for USB 2.0, 3.1, in addition to PD Source, Sink and Dual-Role devices. Highly configurable,this single platform supports the broadest range of official USB-IF Compliance tests including USB Type-C, PD 2.0/3.0, USB 3.1 Hub and Link Layer. Now enhanced to support all the latest Type-C compliance checks including the Power Delivery eye-diagram tests, the M310P is the ‘one-stop’ solution for USB certification.
