PowerTrace

PowerTrace II LITE

PowerTrace II LITE

PowerTrace II / III connect to the target via a TRACE32® Preprocessor.

  • 512 MByte trace memory
  • Fast trace upload to the host computer
  • Maximum bandwidth of 10.8 GBit/s
  • Universal trace module, connect to target via TRACE32® AutoFocus II or TRACE32® Serial Preprocessor
  • Support for parallel trace ports with up to 32-bit
  • Support for serial trace ports up to 4 lanes
  • Support for TRACE32® Streaming up to 50 MByte/s

Configuration

PowerTrace II LITE is an extension to the debug module TRACE32® PowerDebug PRO and offers a trace memory of 512 MByte, which can record trace data conveyed off-chip via a parallel or serial trace port.

PowerTrace II LITE Extension

Data Rates TRACE32® AutoFocus II Preprocessor

  • Parallel trace ports 600+ MBit/s per pin for a port with up to 8-bit (+TCTL) in DDR mode
  • Parallel trace ports up to 450 MBit/s per pin for a port with 16-bit (+TCTL) in DDR mode
  • Parallel trace ports up to 225 MBit/s per pin for a port with 32-bit (+TCTL)

Data Rate TRACE32® Serial Preprocessor

  • Serial trace ports up to 4 lanes, each lane max. 6.5 Gbit/s, but only up to 10.8 GBit/s in total

PowerTrace II

PowerTrace II
  • 1, 2 or 4 GByte trace memory
  • Fast trace upload to the host computer
  • Maximum bandwidth of 19.2 GBit/s
  • Universal trace module, connect to target via TRACE32® AutoFocus II or TRACE32® Serial Preprocessor
  • Support for parallel trace ports with up to 32-bit
  • Support for serial trace ports up to 4 lanes
  • Support for TRACE32® Streaming up to 180 MByte/s, compression allows higher data rates to be achieved
  • Includes Standard Probe (17 digital channels)

Configuration

PowerTrace II is an extension to the debug module TRACE32® PowerDebug PRO and offers a trace memory of up to 4 GByte, which can record trace data conveyed off-chip via a parallel or serial trace port.

PowerTrace II Extension

Data Rates TRACE32® AutoFocus II Preprocessor

  • Parallel trace ports 600+ MBit/s per pin for a port with up to 8-bit (+TCTL) in DDR mode
  • Parallel trace ports up to 600+ MBit/s per pin for a port with up to 16-bit (+TCTL) in DDR mode; without "continuous mode" also for 18-bit ports
  • Parallel trace ports up to 350 MBit/s per pin for a port with up to 32-bit (+TCTL)

Data Rate TRACE32® Serial Preprocessor

  • Serial trace ports up to 4 lanes, each lane max. 6.5 Gbit/s, but only up to 19.2 GBit/s in total

Included Standard Probe

In addition to the regular trace features PowerTrace II can be used as a 17 channel logic analyzer with the provided Standard Probe for transient recording, simple triggering, protocol analysis etc. With the TRACE32® Analog Probe which could be ordered seperately the voltage and current values can be measured for energy profiling. PowerTrace II provides a 1024K trace memory for this purpose.

Standard Probe

PowerTrace III

PowerTrace III
  • 8 GByte trace memory
  • Fast trace upload to the host computer
  • Maximum bandwidth of 19.2 GBit/s
  • Universal trace module, connect to target via TRACE32 AutoFocus II or serial preprocessor
  • Support for parallel trace ports with up to 32-bit
  • Support for serial trace ports up to 4 lanes
  • Support for TRACE32 Streaming up to 400 MByte/s
  • TRACE32 Mixed-Signal Probe included (12 digital channels, 6 single-ended voltage channels, 2 current sense channels)

Configuration

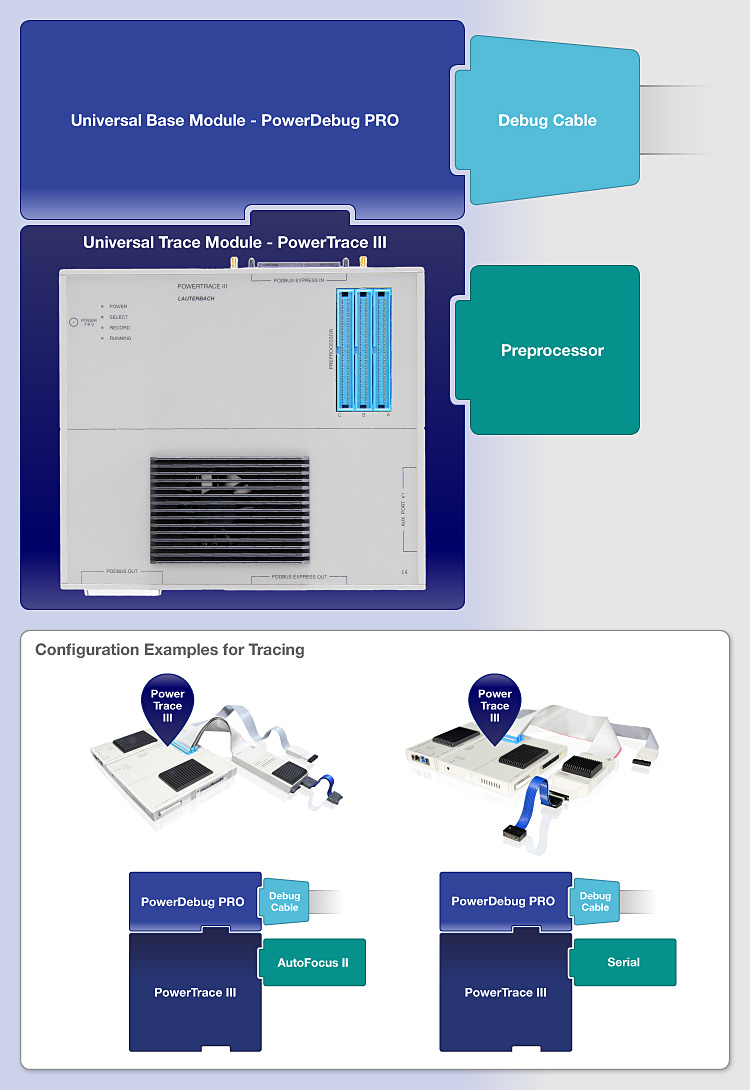

PowerTrace III is an extension to the debug module TRACE32 PowerDebug PRO and offers a trace memory of up to 8 GigaByte, which can record trace data conveyed off-chip via a parallel or serial trace port.

PowerTrace III Extension

Data Rates TRACE32 AutoFocus II Preprocessor

  • Parallel trace ports 600+ MBit/s per pin for a port with up to 8-bit (+TCTL) in DDR mode
  • Parallel trace ports up to 600+ MBit/s per pin for a port with up to 16-bit (+TCTL) in DDR mode; without "continuous mode" also for 18-bit ports
  • Parallel trace ports up to 350 MBit/s per pin for a port with up to 32-bit (+TCTL)

Data Rate TRACE32 Serial Preprocessor

  • Serial trace ports up to 4 lanes, each lane max. 6.5 Gbit/s, but only up to 19.2 GBit/s in total

Included Mixed-Signal Probe

Mixed-Signal Probe

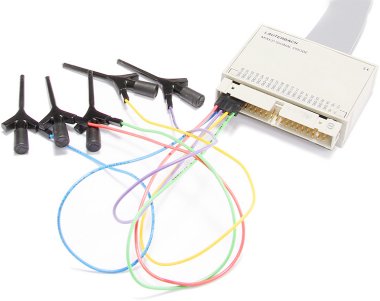

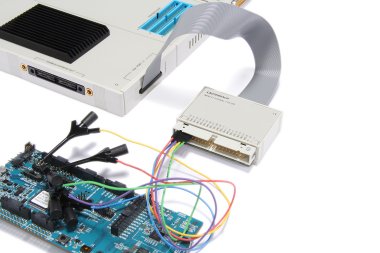

The scope of delivery for PowerTrace III also includes the TRACE32 Mixed Signal Probe, which allows digital and analog signals to be recorded and correlated directly with the trace recording performed by a TRACE32 AutoFocus II or Serial Preprocessor. The correlation is based on a common time stamp.

TRACE32 Mixed Signal Probe

  • Record digital/analog signals and correlate them with program flow
  • Digital signals: 12 channels, 0V - 5V, 200 MSamples/s per channel, threshold 0.1V - 2.5V
  • Analog signals: 6 single-ended voltage channels, -12V - +12V, 13-bit resolution, 2 current sense channels, up to 240mV differential shunt resistor voltage, 1 MSample/s conversion rate
TRACE32 Mixed Signal Probe

PowerTrace Serial

Highlights

PowerTrace Serial
  • 4 GByte trace memory
  • Universal module that is prelicensed for a trace protocol on delivery
  • Additional trace protocol licenses can be added
  • Up to 12.5 Gbit/s per lane
  • Maximum bandwidth of 100 GBit/s
  • Aurora-based trace protocols up to 8 RX lanes
  • PCIe 3.0-based trace protocol up to 8 RX/TX lanes
  • Reference-clock and bit-clock support
  • Fast trace upload to the host computer
  • Support for TRACE32 Streaming up to 400 MByte/s
  • Includes Standard Probe (17 digital channels)
  • Support for Arm/Cortex, ARC, CEVA-X, MPC57xx, QorIQ, RH850, RISC-V, TriCore, Xtensa

Configuration

PowerTrace Serial is an extension to the debug module TRACE32 PowerDebug PRO and offers a trace memory of up to 4 GByte, which can record trace data conveyed off-chip via a serial trace port.

PowerTrace Serial Extension

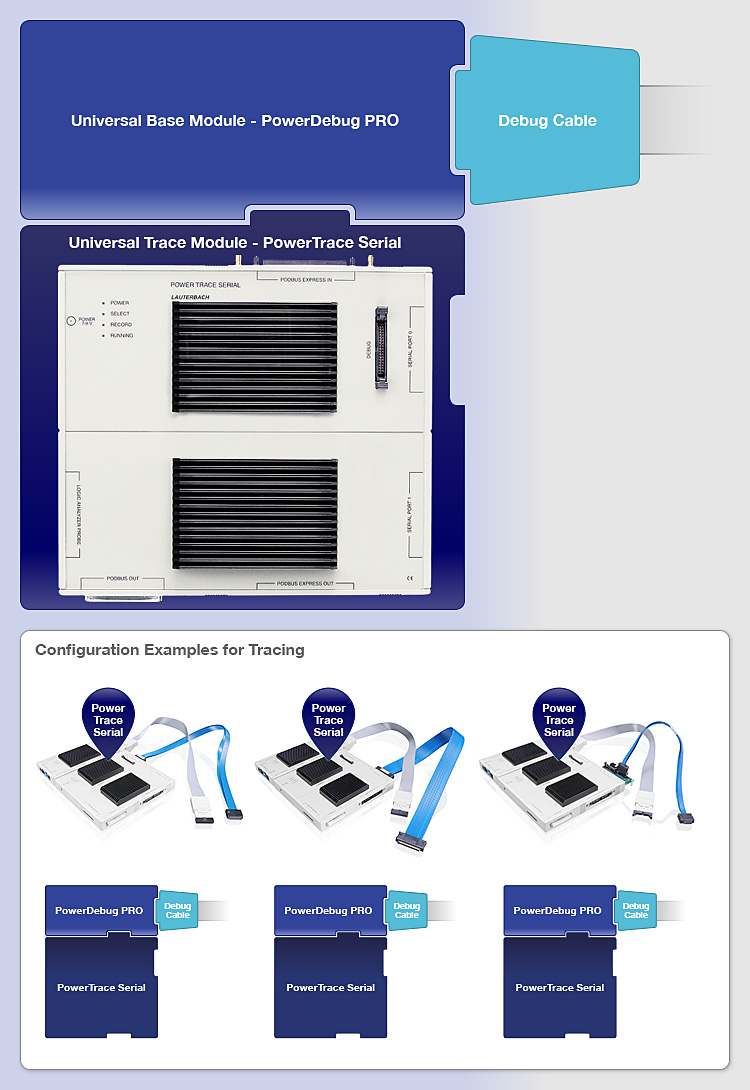

The PowerTrace Serial has two serial port connectors:

  • The picture on the left shows the use of Serial Port 0, which is designed for HSSTP trace ports with up to 6 lanes.
  • The picture in the middle shows the use of Serial Port 1, which is designed for PCIe trace ports with up to 8 lanes.
  • Other serial trace ports need an adapter to be used, as shown by the right picture.

Data Rates TRACE32 AutoFocus II Preprocessor

  • Parallel trace ports 600+ MBit/s per pin for a port with up to 8-bit (+TCTL) in DDR mode
  • Parallel trace ports up to 600+ MBit/s per pin for a port with up to 16-bit (+TCTL) in DDR mode; without "continuous mode" also for 18-bit ports
  • Parallel trace ports up to 350 MBit/s per pin for a port with up to 32-bit (+TCTL)

Standard Probe/Analog Probe

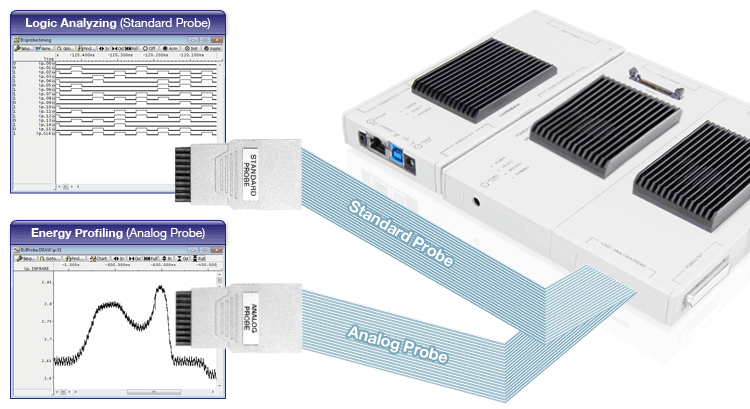

In addition to the regular trace features PowerTrace Serial can be used as a 17 channel logic analyzer with the provided Standard Probe for transient recording, simple triggering, protocol analysis etc. With the TRACE32 Analog Probe which could be ordered seperately the voltage and current values can be measured for energy profiling. PowerTrace Serial provides a 1024K trace memory for this purpose.

Standard Probe/Analog Probe
