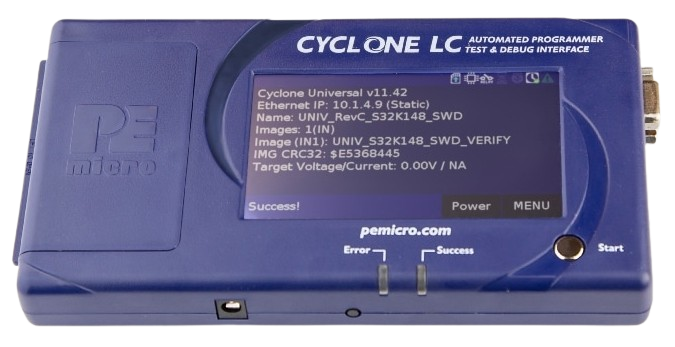

Cyclone LC ARM

• Cost-effective programmer for ARM Cortex-M devices
• Supports essential programming and debugging features
• Stand Alone Programming Images (SAP)
• Cloud-Connected Programming Images
• Powerful Automation Control
• Multiple Communications Interfaces
• Touchscreen LCD Display
• Target Power Management
• Auto-Counting & Shared Serial Numbers
• Ethernet Based Debugging
• On-Board Storage
• Programming Control Port

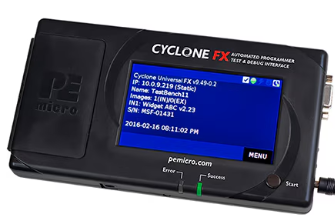

Cyclone FX ARM

• High-performance programmer for ARM Cortex-M devices.
• Larger On-Board Storage
• Wi-Fi Communications
• ProCryption Security
• External SDHC Memory
• Advanced Testing Feature
• Target Current and Voltage Measurement

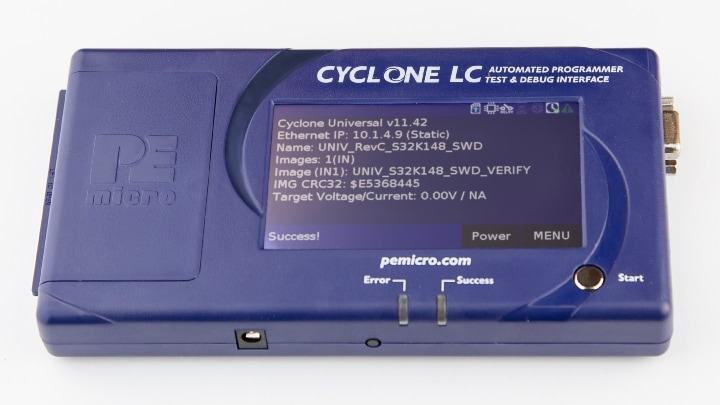

Cyclone LC Universal

• Includes all the features of Cyclone LC ARM.
• Supports ARM and multiple 8/16/32-bit microcontrollers.

Cyclone FX Universal

• Includes all the features of Cyclone FX ARM.
• Advanced programmer supporting wide range of microcontrollers.

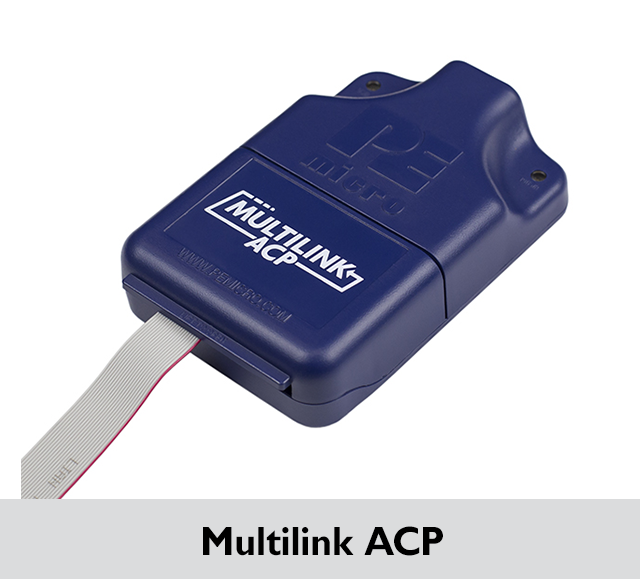

Multilink ACP

• Supports ARM Cortex-M devices
• Provides debugging and flash programming capability
• Works with target voltage: 1.8V-5.25V
• Supports many debug/programming protocols including JTAG, SWD, BDM, BDC, ONCE, DAP, Secure JTAG and more
• Includes USB cable, Type A Male to Type B Male, 6-ft.

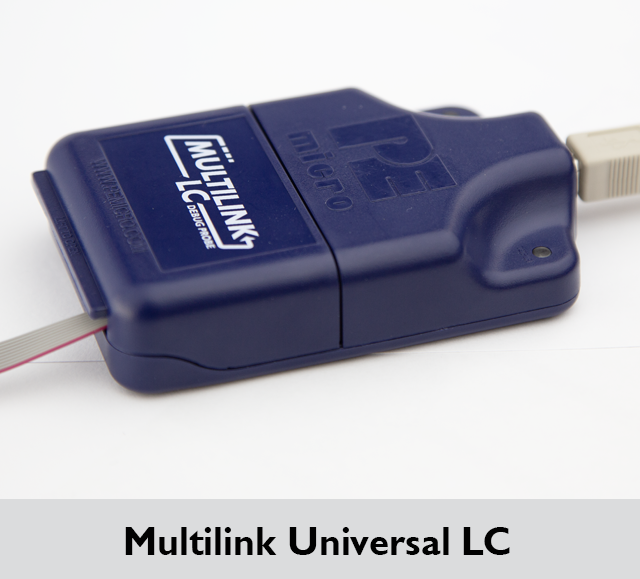

Multilink Universal

• Includes the same feature set as ACP but with extended device compatibility
• Supports ARM Cortex-M and many additional 8/16/32-bit microcontrollers
• Generates programming voltage on RESET line for RS08 devices.
• Target Frequency: 16Khz-50Mhz (applies to HCS08, RS08, CFV1, S12Z, or HCS12X only)

Multilink FX

• Includes the features of ACP and Multilink Universal LC
• Supports ARM + NXP 8/16/32-bit microcontrollers
• Real-Time Power Measurement.
• Provides high-speed communication.
• Can be used to power target MCU Target Voltage: 3.3V, 5.0V
• I/O line clamping for added protection

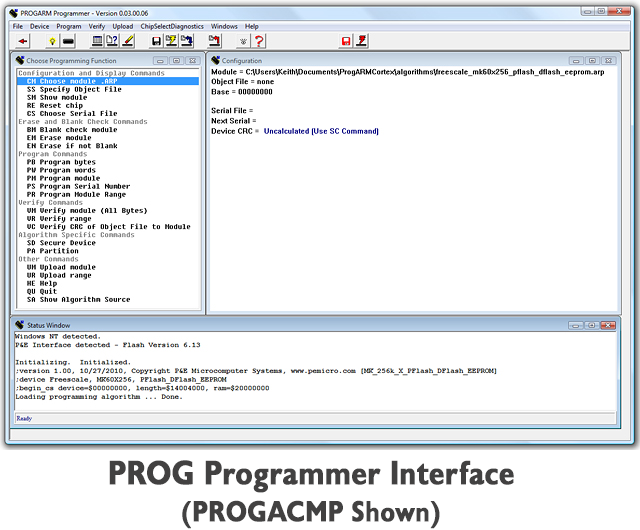

PROG Flash Programming Software

PROG software can be purchased and installed for use with the Multilink debug probe. Flash/EEPROM programming software. Includes interactive and scripted programming.

Supported families/Architectures

• PROG12Z (PN: PROG-HL-12Z)
• PROG16Z (PN: PROG-HL-16Z)
• PROG32Z (PN: PROG-HL-32Z)
• PROGCFV1 (PN: PROG-HL-CFV1)
• PROGCFZ (PN: PROG-HL-CFZ)
• PROGHCS08 (PN: PROG-HL-HCS08)
• PROGPPCNEXUS (PN: PROG-HL-PPCNEXUS)
• PROGPPCZ (PN: PROG-HL-PPCZ)
• PROGRS08 (PN: PROG-HL-RS08)
• PROGS12ZZ (PN: PROG-HL-S12Z)
• PROGACMP (PN: PROG-HL-ARM)

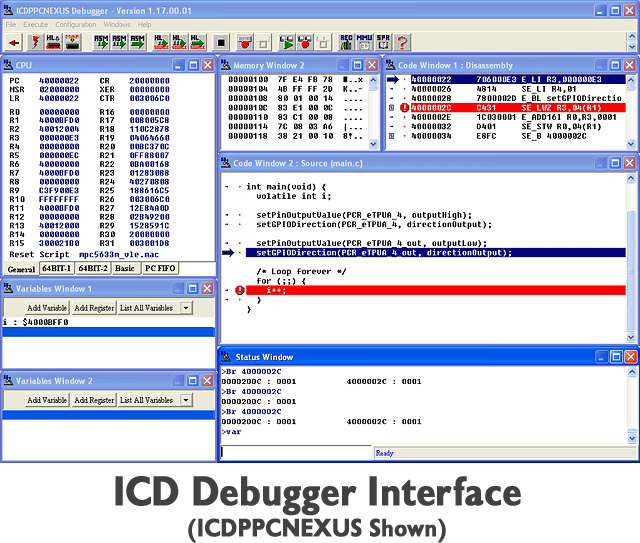

ICD In-Circuit Debugger Software

In-Circuit Debugger Software

Supported families/Architectures

• ICDPPCNEXUS (PN: ICD-HL-PPCNEXUS)
• ICDCFZ (PN: ICD-HL-CFZ)
• ICDPPCZ (PN: ICD-HL-PPCZ)
• ICD12Z (PN: ICD-HL-12Z)
• ICD16Z (PN: ICD-HL-16Z)
• ICD32Z (PN: ICD-HL-32Z)
• ICDCFV1 (PN: ICD-HL-CFV1)
• ICDHCS08 (PN: ICD-HL-HCS08)
• ICDRS08 (PN: ICD-HL-RS08)
• ICDS12ZZ (PN: ICD-HL-S12Z)

UNIT Library Modules

C/C++ and Delphi library modules which allow the creation of custom PC applications to control PEmicro hardware interfaces

Supported families/Architectures

• UNIT Library for HC12 for Distribution (PN: UNIT12Z_DIST)
• UNIT Library for HC16 for Distribution (PN: UNIT16Z_DIST)
• UNIT Library for CPU32 for Distribution (PN: UNIT32Z_DIST)
• UNIT Library for S12Z for Distribution (PN: UNITS12Z_DIST)
• UNIT Library for MCORE for Distribution (PN: UNITMCZ_DIST)
• UNIT Library for PPC BDM for Distribution (PN: UNITPPCZ_DIST)
• UNIT Library for ColdFire for Distribution (PN: UNITCFZ_DIST)
• UNIT Library for HCS08 for Distribution (PN: UNITHCS08_DIST)
• UNIT Library for DSC for Distribution (PN: UNITDSC_DIST)
• UNIT Library for RS08 for Distribution (PN: UNITRS08_DIST)
• UNIT Library for PPCNEXUS for Distribution (PN: UNITPPCNEXUS_DIST)
• UNIT Library for HCS08 (PN: UNITHCS08)
• UNIT Library for HC12 (PN: UNIT12Z)
• UNIT Library for HC16 (PN: UNIT16Z)
• UNIT Library for CPU32 (PN: UNIT32Z)
• UNIT Library for ColdFire (PN: UNITCFZ)
• UNIT Library for S12Z (PN: UNITS12Z)
• UNIT Library for MCORE (PN: UNITMCZ)
• UNIT Library for PPC BDM (PN: UNITPPCZ)
• UNIT Library for DSC (PN: UNITDSC)
• UNIT Library for RS08 (PN: UNITRS08)
• UNIT Library for PPCNEXUS (PN: UNITPPCNEXUS)

PKG Software Packages

PEmicro software package, typically includes debugger, programmer, IDE, register file editor.

Supported families/Architectures

• PKGPPCNEXUS (PN: PKG-HL-PPCNEXUS)
• PKGCFZ (PN: PKG-HL-CFZ)
• PKG12Z (PN: PKG-HL-12Z)
• PKGPPCZ (PN: PKG-HL-PPCZ)
• PKG16Z (PN: PKG-HL-16Z)
• PKG32Z (PN: PKG-HL-32Z)
• PKGCFV1 (PN: PKG-HL-CFV1)
• PKGHCS08 (PN: PKG-HL-HCS08)
• PKGRS08 (PN: PKG-HL-RS08)

Accessories

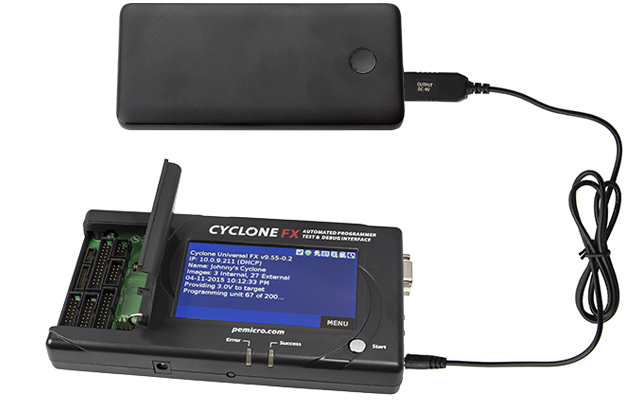

Cyclone 9V Power Pack

Rechargeable 9V output Battery Pack for the Cyclone Stand-Alone Programmers

• 9 V Cyclone Power Pack (PN: CYCLONE-9V-POWERPACK)

Cyclone SDHC Card

32GB Encrypted SDHC Card for Cyclone FX

• SD Card for Cyclone FX Programmers (PN: SDCARD)

Hardware Adapters

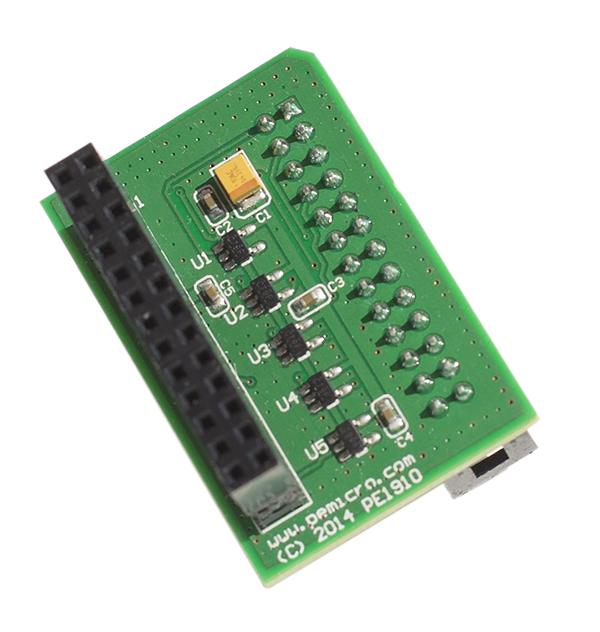

• Berg to Mictor Adapter (PN: BERG14-TO-MICTOR38)
• STM8 adapter for Cyclone LC/FX Universal (PN: CU-CUFX-STM8-ADPT)
• Renesas Adapter for Cyclone FX Universal (PN: CUFX-RENESAS-ADPT)
• Adapter for MCF5272 and MCF5206(E) (PN: CABLE CF ADAPTER)
• RS08 Adapter for Multilink Universal/FX (PN: ML-MLFX-RS08-ADPT)

Cables and Cyclone Power Supply

Ribbon Cables, 6V Power Supply, Power Cables

• Cyclone Power Supply (PN: CPRO_PWRSUPPLY)

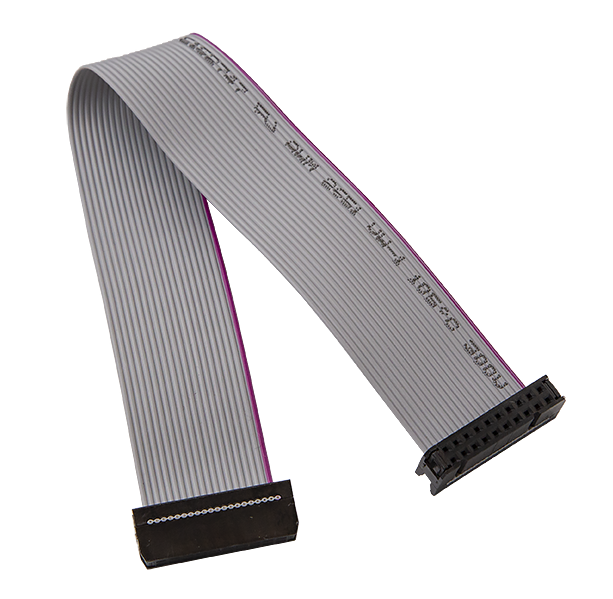

• 26-pin Ribbon Cable (PN: CAB_RIBBON_26-PIN)
• 20-pin Mini Ribbon Cable (PN: CAB_RIBBON_20-PIN_MINI)
• 10-pin Mini Ribbon Cable (PN: CAB_RIBBON_10-PIN_MINI)
• 4-pin ERNI Ribbon Cable (PN: CAB_RIBBON_ERNI_4-PIN)
• 20-pin Ribbon Cable (PN: CAB_RIBBON_20-PIN)
• 26-pin Female to Female Ribbon Cable (PN: CAB_RIBBON_26-PIN_FF)
• 6-pin Ribbon Cable (PN: CAB_RIBBON_06-PIN)
• 10-pin Ribbon Cable (PN: CAB_RIBBON_10-PIN)
• 14-pin Ribbon Cable (PN: CAB_RIBBON_14-PIN)
• 6-pin Ribbon Cable (PN: CAB_RIBBON_16-PIN)
• 9 V Cyclone Power Pack (PN: CYCLONE-9V-POWERPACK)
• 3 power cables for Cyclones (PN: CYCLONE_PRO_POWER_CA)
