TRACE32 Tools for Arm® Cortex®-M

µTrace® for Cortex-M®

  • All-in-one debug and trace solution for Cortex-M
  • Recommended for single-core microcontrollers with Cortex-M
  • Recommended for multi-core microcontrollers with solely Cortex-M (single debug port)
  • 256MByte trace memory
  • USB 3 interface to the host computer
  • TRACE32 Streaming up to 150 MByte/s
  • TRACE32 Mixed Signal Probe supported
µTrace® for Cortex-M®

TRACE32 CombiProbe 2 for Arm® Cortex® -M

  • Recommended for debugging of multicore microcontrollers consisting of Cortex-M cores and cores from other architecture
  • Recommended for the parallel operation of two Cortex-M microcontrollers in safety-critical applications (hardware redundancy)
  • Debug cable and 512 MByte of trace memory
  • Whisker MIPI20T for Arm/Cortex and Whisker MIPI34
  • Provides TRACE32 AutoFocus capabilty for MIPI34 whisker
  • TRACE32 Streaming up to 85 MByte/s
  • TRACE32 Mixed Signal Probe supported

TRACE32 Tools for Intel® Processors

CombiProbe MIPI60-Cv2

  • CombiProbe MIPI60-Cv2 provides debug and system trace capability
  • Support for standard JTAG, debug HOOKs and I2C bus
  • Support for merged debug ports (two JTAG chains per debug connector)
  • Support for survivability features (threshold, slew rate, etc.)
  • Support for system trace port with up to 8 trace data channels
  • 512 MByte of trace memory
  • Voltage range 1.0 V to 1.8 V
  • SMP debugging (including hyperthreading)
  • AMP debugging with other architectures
  • BIOS/UEFI debugging with tailor-made GUI for all UEFI phases
  • Linux- and Windows-aware debugging
  • Hypervisor debugging
  • Support for system trace decoding via the Intel® Trace Hub Library
CombiProbe MIPI60-Cv2

CombiProbe for Intel® DCI OOB

  • CombiProbe DCI OOB for closed chassis targets with USB3 port and DCI OOB capability
  • CombiProbe DCI OOB provides debug and system trace capability
  • Support for standard JTAG, debug HOOKs and system trace via DCI protocol
  • 512 MByte of trace memory
  • SMP debugging (including hyperthreading)
  • AMP debugging with other architectures
  • BIOS/UEFI debugging with tailor-made GUI for all UEFI phases
  • Linux- and Windows-aware debugging
  • Hypervisor debugging
  • System trace configuration and decoding via the Intel® Trace Hub library

QuadProbe MIPI60-Q

  • QuadProbe MIPI60-Q provides debug capability for up to 4 debug connectors on a single target
  • Support for standard JTAG, debug HOOKs and I2C bus
  • Support for merged debug ports (two JTAG chains per debug connector)
  • Support for survivability features (threshold, slew rate, and more)
  • Voltage range 1.0 V to 1.8 V
  • SMP debugging for multi-socket targets
  • SMP debugging of hundreds of threads
  • AMP debugging with other architectures
  • BIOS/UEFI debugging with tailor-made GUI for all UEFI phases
  • Linux- and Windows-aware debugging
  • Hypervisor debugging
QuadProbe MIPI60-Q

Tools for RISC-V

µTrace® for RISC-V 32-bit

  • Debug solution for RISC-V 32-bit
  • Recommended for single-core microcontrollers with RISC-V 32-bit
  • Recommended for multi-core microcontrollers with solely RISC-V 32-bit (single debug port)
  • USB 3 interface to the host computer
  • TRACE32 Mixed Signal Probe supported
µTrace® for RISC-V 32-bit

TRACE32 CombiProbe 2 for RISC-V

  • Recommended for debugging of multicore microcontrollers consisting of RISC-V cores and cores from other architectures
  • Recommended for the parallel operation of two RISC-V microcontrollers in safety-critical applications (hardware redundancy), requires two MIPI20T Whisker
  • Debug cable and 512 MByte of trace memory
  • Whisker MIPI20T
  • TRACE32 Streaming up to 85 MByte/s
  • TRACE32 Mixed Signal Probe supported

Tools for TriCore™ AURIX™

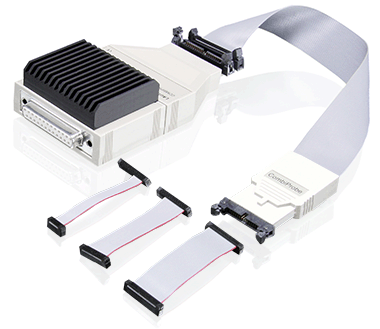

CombiProbe 2 for TriCore DAP

  • Debug cable and 512 MByte of trace memory
  • Whisker cable with 26-pin automotive connector
  • Same debug features as the TRACE32 Debug Cables for TriCore
  • 512 MB of trace memory for DAP Streaming
  • DAP Streaming with up to 30 MByte/s
  • DAP streaming requires a DAP mode, for performance reasons, we recommend DAPWide at 160 MHz
  • DAP Streaming for filtered tracing, GTM tracing and Compact Function Trace
  • TRACE32 Streaming for long-time recording
CombiProbe 2 for TriCore DAP
